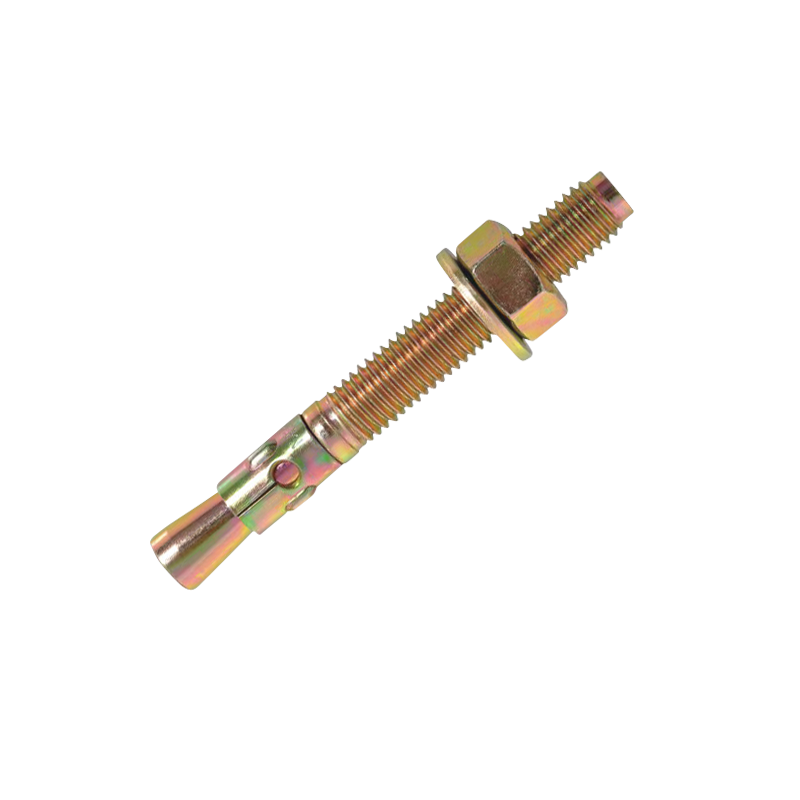

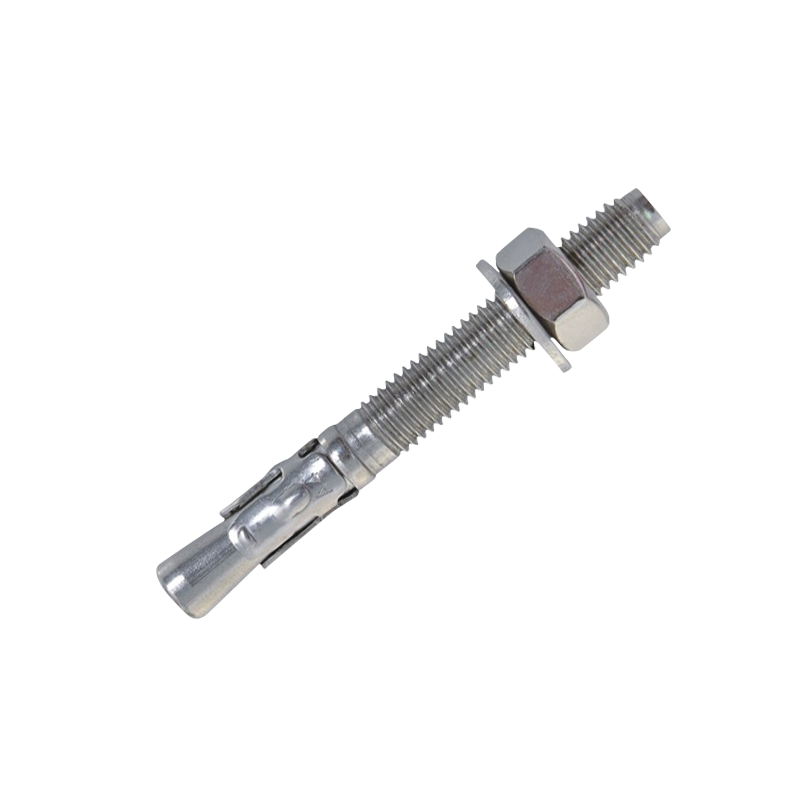

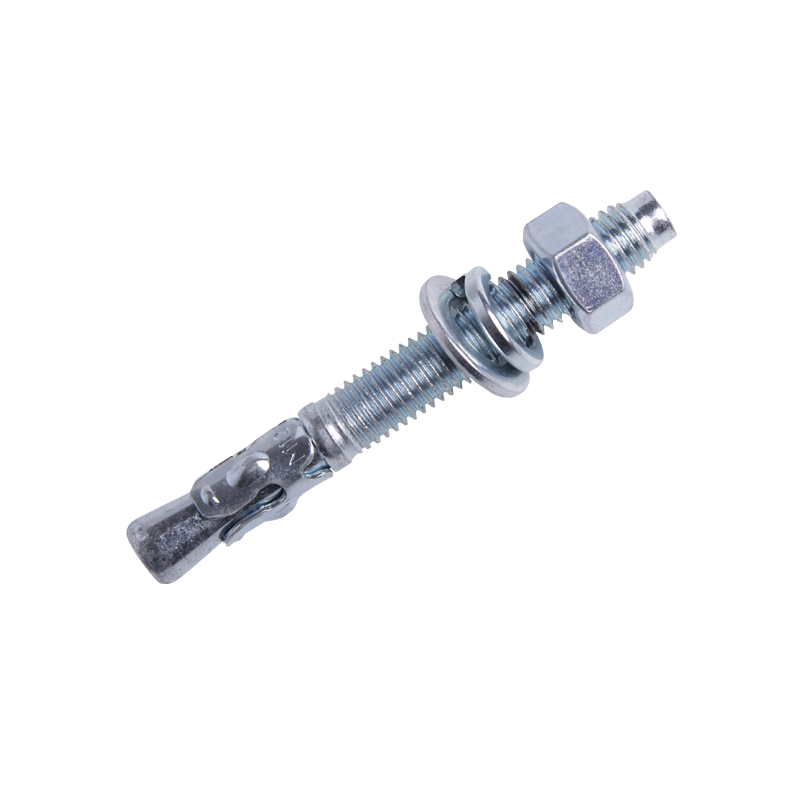

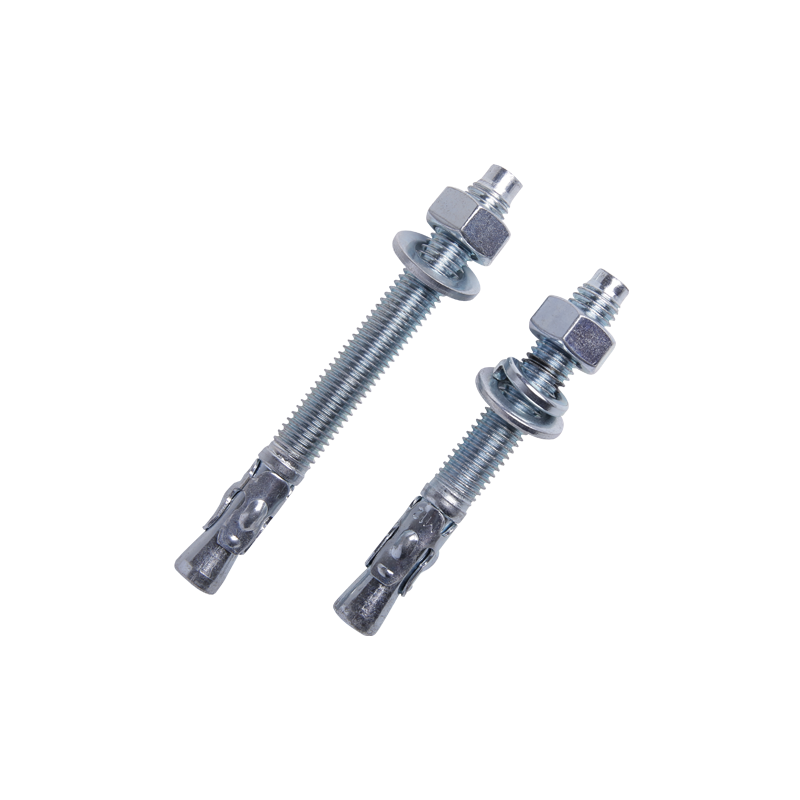

Wedge Anchor

Wedge Anchor

Introduction: The anchor can be hammered below the surface of the concrete when no longer needed. The one-piece clip is formed around anchor, assuring full expansion for dependable, superior holding power.

Material: Carbon Steel,Stainless Steel A2,Stainless Steel A4

Surface treatment: BZP,YZP,HDG

Grade：Grade 2,Grade 5,Grade 4.8,Grade 6.8,Grade8.8

Applications:Solid Concrete and Masonry.

+86-13758224206 Contact Us
  • Description
  • Additional Information
  • Feedback

  • Code

    Size

    Thread

    Drill Diameter

    Length

    WA-14134

    1/4'' x 1-3/4''

    1/4"-20UNC

    1/4’’

    1-3/4’’

    WA-56234

    5/16'' x 2-3/4''

    5/16"-18UNC

    5/16’’

    2-3/4’’

    WA-56400

    5/16'' x 4''

    5/16"-18UNC

    5/16’’

    4’’

    WA-38234

    3/8'' x 2-3/4''

    3/8"-16UNC

    3/8’’

    2-3/4’’

    WA-38312

    3/8'' x 3-1/2''

    3/8"-16UNC

    3/8’’

    3-1/2’’

    WA-12500

    1/2'' x 5''

    1/2"-13UNC

    1/2’’

    5’’

    WA-58600

    5/8'' x 6''

    5/8"-11UNC

    5/8’’

    6’’

    WA-06040

    M6 x 40

    M6-P1.0

    6mm

    40mm

    WA-08060

    M8 x 60

    M8-P1.25

    8mm

    60mm

    WA-08090

    M8 x 90

    M8-P1.25

    8mm

    90mm

    WA-10080

    M10 x 80

    M10-P1.5

    10mm

    80mm

    WA-10120

    M10 x 120

    M10-P1.5

    10mm

    120mm

    WA-12100

    M12 x 100

    M12-P1.75

    12mm

    100mm

    WA-16140

    M16 x 140

    M16-P2.0

    16mm

    140mm

    (These are a part of the sizes, the length can be customized.)
